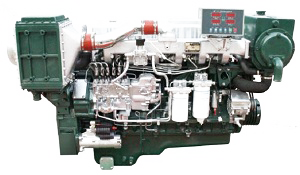

YC6MJ/YC6MK/YC6M Series diesel engine

Type characteristic
The overall crankcase, rear gear housing and dot line meshing patented technology,

lower than the same product noise;
Wet cylinder liner is easy to maintain and repair
High power density and average effective pressure are achieved by using P7100 oil pump,

low inertia small bore P injector, and Honeywell high efficiency supercharger;
The front end of the crankshaft can output torque greater than 900N.m, the torque reserve is large,

 and the maximum torque of the external characteristics is 2150N.m;
Seal technique for piston ring, lubricating oil consumption more than 50% low power;
High fuel efficiency and low maintenance cost;
Lower noise, faster start-up, lower emissions;
European technology, reliability development using depth and generalized mechanical procedures,

the overhaul period is greater than 12000 hours
Integral cast iron water jacket exhaust pipe with lower engine room temperature

YC6MJ technical parameter

Model YC6MJ450L-20 YC6MJ410L-20 YC6MJ365L-20
Engine Vertical inline, 6 cylinder, 4 stroke, direct injection, water cooling
Bore * stroke(mm) 131 ×145
inlet Pressurization & intercooler
displacement(L) 11.73
Compression ratio 16.8:1
Rated power / speed(kW(hp)/r/min) 330(450)/2100 330(410)/1800 267(365)/1500
Fuel consumption g/(kW·h) ≤192
Engine oil consumption g/(kW·h) ≤0.5
To turn to Counter clockwise (facing flywheel)
Ignition mode Electric startup
dry weight(kg) 1250
Size (length, width, height)(mm) 1834 ×1028 ×1278.5
Ship inspection ZC, ZY, CCS, IMO

YC6MK technical parameter

Model YC6MK330C YC6MK320C YC6MK300C YC6MK280C
Engine Vertical inline, 6 cylinder, 4 stroke, direct injection, water cooling
Bore * stroke(mm) 123 ×145
inlet Pressurization & intercooler
displacement(L) 10.34
Compression ratio 17.5:1
Rated power / speed(kW(hp)/r/min) 240(330)/1500 235(320)/1800 220(300)/1500 205(280)/1500
Fuel consumption g/(kW·h) ≤189
Engine oil consumption g/(kW·h) ≤0.5
To turn to Counter clockwise (facing flywheel)
Ignition mode Electric startup
dry weight(kg) 1270
Size (length, width, height)(mm) 1815 ×1058 ×1276
Ship inspection ZC, ZY, CCS, IMO

YC6M technical parameter

Model YC6M320C YC6M280C YC6M295C
Engine Vertical inline, 6 cylinder, 4 stroke, direct injection, water cooling
Bore * stroke(mm) 120 ×145
inlet Pressurization & intercooler
displacement(L) 9.84
Compression ratio 17.5:1
Rated power / speed(kW(hp)/r/min) 234(320)/2100 206(280)/2100 216(295)/1800
Fuel consumptiong/(kW·h) ≤189
Engine oil consumption g/(kW·h) ≤0.5
To turn to Counter clockwise (facing flywheel)
Ignition mode Electric startup
dry weight(kg) 1150
Size (length, width, height)(mm) 1795 ×1085 ×1360
Ship inspection ZC, ZY, CCS, IMO
Model YC6M270C YC6M240-C20 YC6M300C YC6M260C YC6M240C YC6M220C
Engine Vertical inline, 6 cylinder, 4 stroke, direct injection, water cooling
Bore * stroke(mm) 120 ×145
inlet Pressurization & intercooler
displacement(L) 9.84
Compression ratio 17.5:1
Rated power / speed(kW(hp)/r/min) 199(270)/1800 176(240)/1800 219(300)/1500 192(260)/1500 176(240)/1500 162(220)/1800
Fuel consumption g/(kW·h) ≤189
Engine oil consumption g/(kW·h) ≤0.5
To turn to Counter clockwise (facing flywheel)
Ignition mode Electric startup
dry weight(kg) 1150
Size (length, width, height)(mm) 1795 ×1085 ×1360
Ship inspection ZC, ZY, CCS, IMO
