current location:Home > Agent Products > Guangxi Yuchai > Diesel Engine

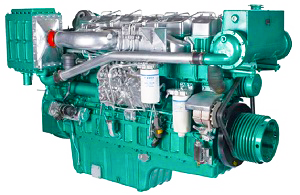

YC6T series diesel engine


Type characteristic
Through deep cold and hot impact test, high temperature, high cold test, crankshaft fatigue test and more than ten verification, accumulated 20000 hours durability bench test;
The body is made of alloy cast iron and has higher strength; the high strength alloy connecting rod is more reliable in movement;
Internal cooling oil path piston, one ring cooling technology, reduce piston temperature, engine oil consumption, improve piston reliability
Four valve technology, effectively reduce the engine intake and exhaust noise; rear gear chamber and advanced point line meshing gear transmission technology, mechanical noise
The mechanical loss is reduced by more than 15%, the pump loss is smaller, and the consumption is reduced;
Electric and gas dual energy can be used to meet the safety requirements of chemical and other special ships.


YC6T(1800rpm) technical parameter

Model YC6T540C YC6T510C YC6T480C YC6T420C YC6T390C
Engine Vertical inline, 6 cylinder, 4 stroke, direct injection, water cooling
Bore * stroke(mm)
145 ×165
inlet Pressurization & intercooler
displacement(L) 16.35
Compression ratio 15.5:1
Rated power / speed(kW(hp)/r/min) 396(540)/1800 375(510)/1800 352(480)/1800 308(420)/1800 287(390)/1800
Fuel consumption g/(kW·h) ≤195
Engine oil consumption g/(kW·h) ≤1
To turn to Counter clockwise (facing flywheel)
Ignition mode Electric starting (optional pneumatic start)
dry weight(kg) 1980
size(L×W×H)(mm) 2125 ×1105 ×1645
Ship inspection ZC, ZY, CCS, IMO

YC6T(1500rpm) technical parameter

Model YC6T490C YC6T450C YC6T410C YC6T400C YC6T375C YC6T330C
Engine Vertical inline, 6 cylinder, 4 stroke, direct injection, water cooling
Bore * stroke(mm) 145 ×165
inlet Pressurization & intercooler
displacement(L) 16.35
Compression ratio 15.5:1
Rated power / speed(kW(hp)/r/min) 360(490)/1500 330(450)/1500 300(410)/1500 294(400)/1500 276(375)/1500 242(330)/1500
Fuel consumption g/(kW·h) ≤195
Engine oil consumption g/(kW·h) ≤1
To turn to Counter clockwise (facing flywheel)
Ignition mode Electric starting (optional pneumatic start)
dry weight(kg) 1980
size(L×W×H)(mm) 2125 ×1105 ×1645
Ship inspection ZC, ZY, CCS, IMO

YC6T(1200rpm) technical parameter

Model YC6T380C YC6T350C YC6T300C
Engine Vertical inline, 6 cylinder, 4 stroke, direct injection, water cooling
Bore * stroke(mm) 145 ×165
inlet Pressurization & intercooler
displacement(L) 16.35
Compression ratio 15.5:1
Rated power / speed(kW(hp)/r/min)


Fuel consumption g/(kW·h) ≤195
Engine oil consumption g/(kW·h) ≤1
To turn to Counter clockwise (facing flywheel)
Ignition mode Electric starting (optional pneumatic start)
dry weight(kg) 1980
size(L×W×H)(mm) 2125 ×1105 ×1645
Ship inspection ZC, ZY, CCS, IMO
